染色封片机YXRF-3000B

高效自动化医疗器械， 提供卓越的染色质量和封片效果

Stainer & Coverslipper YXRF-3000B

Highly automated medical device providing excellent staining quality and coverslipping effects

染色封片机YXRF-3000B

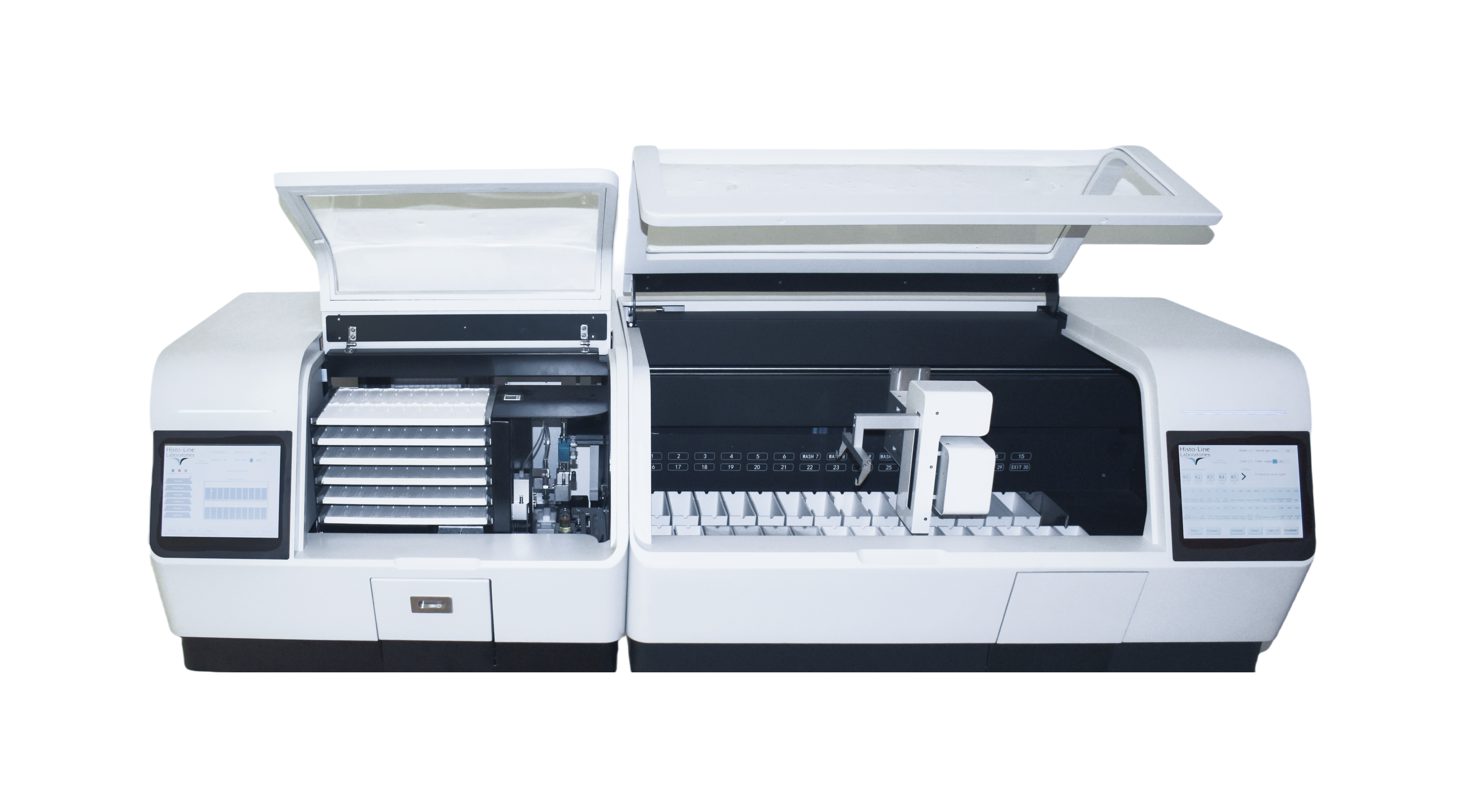

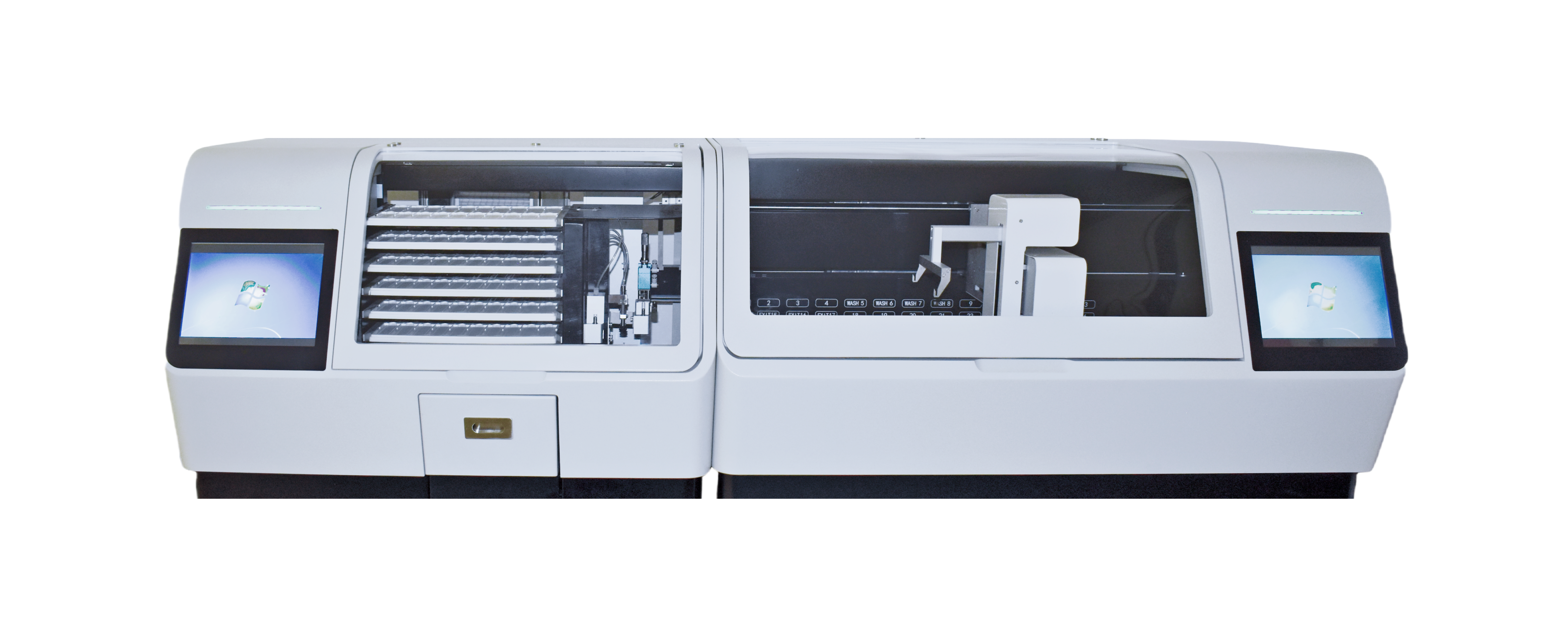

染色封片机正面 染色封片机侧面

产品概述

YXRF-3000系列全自动染色封片一体机是一款高度自动化的医疗器械设备，专为组织切片的染色和封片处理而设计。

该设备集成了先进的染色和封片技术，能够提供卓越的染色质量和封片效果，满足现代病理实验室的高标准要求。YXRF-3000系列不仅能保证出色的质量和稳定性，还能显著加快载玻片处理速度。

它能够确保从第1至2000张载玻片的染色效果始终如一，同时具备封片自动干片功能，干片时间仅需5分钟，为市场上最快的干片速度之一。染色封片完成后的载玻片迅速干燥可供后续使用，大大提高了实验室的工作效率。

主要特点

  • 高效智能处理 - 每小时可处理多达570张烘干后的载玻片，快速完成封片流程，加速诊断过程。
  • 卓越的灵活性 - 提供独特的灵活性，与52个工作站点协作，实现高通量同步运行H&E染色和特殊染色。
  • 智能化操作 - 配备直观的触摸屏界面，简化操作流程，减少培训时间，提高工作效率。
  • 稳定可靠 - 采用先进的质量控制系统，确保染色和封片过程的一致性和可靠性。

专利与认证

亚湘病理拥有多项专利技术，并获得"高新技术企业"、"长沙市小巨人企业"等荣誉称号。我们的专利技术确保了YXRF-3000系列产品的卓越性能和可靠品质。

  • 高新技术企业认证
  • 长沙市小巨人企业
  • 医疗器械生产许可证
  • 染色封片一体化专利技术
  • 智能温控系统专利
  • 高精度封片技术专利
获取报价 下载产品资料

Product Overview

The YXRF-3000 Series Automatic Stainer & Coverslipper is a highly automated medical device designed for tissue section staining and coverslipping.

This equipment integrates advanced staining and coverslipping technologies to provide excellent staining quality and coverslipping effects, meeting the high standards of modern pathology laboratories. The YXRF-3000 Series not only ensures outstanding quality and stability but also significantly accelerates slide processing speed.

It ensures consistent staining results from the 1st to the 2000th slide and features automatic slide drying with a drying time of just 5 minutes, one of the fastest drying speeds on the market. The rapidly dried slides after staining and coverslipping are immediately available for subsequent use, greatly improving laboratory efficiency.

Key Features

  • Efficient Intelligent Processing - Processes up to 570 dried slides per hour, quickly completing the coverslipping process and accelerating the diagnostic process.
  • Outstanding Flexibility - Offers unique flexibility, collaborating with 52 workstations to achieve high-throughput synchronous operation of H&E staining and special staining.
  • Intelligent Operation - Equipped with an intuitive touch screen interface, simplifying operation procedures, reducing training time, and improving work efficiency.
  • Stable and Reliable - Employs an advanced quality control system to ensure consistency and reliability in the staining and coverslipping process.

Patents and Certifications

YaXiang Pathology holds multiple patents and has been recognized as a "High-Tech Enterprise" and "Changsha Small Giant Enterprise". Our patented technologies ensure the excellent performance and reliable quality of the YXRF-3000 Series products.

  • High-Tech Enterprise Certification
  • Changsha Small Giant Enterprise
  • Medical Device Production License
  • Integrated Staining & Coverslipping Patent
  • Intelligent Temperature Control System Patent
  • High-Precision Coverslipping Technology Patent
Get Quote Download Product Information

全面的功能特点

高速处理能力

YXRF-3000B每小时可处理多达570张载玻片，大大提高了实验室的工作效率。其独特的设计允许同时进行染色和封片操作，无需等待染色完成后再进行封片，节省了宝贵的时间。

多样化染色协议

支持多达50种不同的染色协议，包括H&E染色、特殊染色和免疫组化染色。用户可以根据需要自定义染色步骤、时间和试剂，满足不同类型组织样本的染色需求。

安全保障系统

配备多重安全保障系统，包括试剂泄漏检测、温度监控、载玻片防碰撞保护等。当检测到异常情况时，系统会立即发出警报并采取相应措施，确保设备和样本的安全。

智能控制系统

采用先进的智能控制系统，配备10.4英寸高清触摸屏，操作界面直观友好。系统支持多语言界面，可实时监控设备状态、试剂用量和处理进度，并提供详细的操作日志和错误提示。

试剂管理系统

内置智能试剂管理系统，可自动监控试剂使用情况，提醒用户及时更换或补充试剂。系统还能根据使用频率和时间自动计算试剂的有效期，确保染色质量。

网络连接功能

支持网络连接，可与实验室信息系统(LIS)和医院信息系统(HIS)无缝集成。通过网络接口，用户可以远程监控设备状态、上传染色协议、下载操作日志，实现数据的集中管理和分析。

Comprehensive Features

High-Speed Processing

The YXRF-3000B can process up to 570 slides per hour, greatly improving laboratory efficiency. Its unique design allows simultaneous staining and coverslipping operations, eliminating the need to wait for staining to complete before coverslipping, saving valuable time.

Diverse Staining Protocols

Supports up to 50 different staining protocols, including H&E staining, special staining, and immunohistochemical staining. Users can customize staining steps, times, and reagents according to their needs, meeting the staining requirements of different types of tissue samples.

Safety Protection System

Equipped with multiple safety protection systems, including reagent leak detection, temperature monitoring, slide collision protection, etc. When abnormal conditions are detected, the system immediately issues an alarm and takes corresponding measures to ensure the safety of equipment and samples.

Intelligent Control System

Adopts an advanced intelligent control system with a 10.4-inch high-definition touch screen and an intuitive, user-friendly interface. The system supports multiple languages, can monitor equipment status, reagent usage, and processing progress in real-time, and provides detailed operation logs and error prompts.

Reagent Management System

Built-in intelligent reagent management system that automatically monitors reagent usage and reminds users to replace or replenish reagents in a timely manner. The system can also automatically calculate the shelf life of reagents based on frequency and time of use, ensuring staining quality.

Network Connectivity

Supports network connectivity for seamless integration with Laboratory Information Systems (LIS) and Hospital Information Systems (HIS). Through the network interface, users can remotely monitor device status, upload staining protocols, download operation logs, and achieve centralized data management and analysis.

技术规格

参数 规格
设备尺寸 1650 × 850 × 780 mm (长 × 宽 × 高)
重量 约 320 kg
电源要求 AC 220V ± 10%, 50/60Hz, 1500VA
处理能力 最高 570 张载玻片/小时
染色站点数量 52 个工作站点
试剂槽容量 每个站点 450 ml
载玻片架容量 每架 30 张载玻片
同时处理能力 最多 8 个载玻片架同时处理
染色协议数量 最多可存储 50 种不同染色协议
封片剂类型 支持多种类型的封片剂
封片剂容量 250 ml
封片速度 9 秒/张
干片时间 5 分钟
显示屏 10.4 英寸高清彩色触摸屏
数据接口 USB 2.0, RJ45 以太网接口
操作环境 温度: 15-30°C, 湿度: 30-85% RH (无冷凝)
安全认证 CE, ISO 13485

Technical Specifications

Parameter Specification
Dimensions 1650 × 850 × 780 mm (L × W × H)
Weight Approx. 320 kg
Power Requirements AC 220V ± 10%, 50/60Hz, 1500VA
Processing Capacity Up to 570 slides/hour
Number of Staining Stations 52 workstations
Reagent Container Capacity 450 ml per station
Slide Rack Capacity 30 slides per rack
Simultaneous Processing Up to 8 slide racks simultaneously
Number of Staining Protocols Up to 50 different staining protocols
Mounting Medium Type Supports various types of mounting media
Mounting Medium Capacity 250 ml
Coverslipping Speed 9 seconds/slide
Drying Time 5 minutes
Display 10.4-inch high-definition color touch screen
Data Interfaces USB 2.0, RJ45 Ethernet port
Operating Environment Temperature: 15-30°C, Humidity: 30-85% RH (non-condensing)
Safety Certifications CE, ISO 13485

应用场景

病理实验室

病理实验室

YXRF-3000B是现代病理实验室的理想选择，能够满足日常高通量的H&E染色和特殊染色需求。其高效的处理能力和稳定的染色质量，使其成为大型医院和独立病理实验室的首选设备。

研究机构

研究机构

对于进行组织学和细胞学研究的科研机构，YXRF-3000B提供了灵活的染色协议和精确的染色控制，满足各种研究需求。其可定制的染色参数使研究人员能够获得一致且可重复的实验结果。

肿瘤中心

肿瘤中心

在肿瘤诊断和研究中心，YXRF-3000B能够处理大量的病理切片，支持多种特殊染色和免疫组化染色，为肿瘤的精确诊断和分类提供可靠的技术支持。

教学机构

教学机构

医学院校和培训机构可以利用YXRF-3000B进行病理技术教学和实践培训。其直观的操作界面和详细的操作日志，为学生提供了良好的学习平台。

Application Scenarios

Pathology Laboratory

Pathology Laboratories

The YXRF-3000B is an ideal choice for modern pathology laboratories, capable of meeting daily high-throughput H&E staining and special staining needs. Its efficient processing capacity and stable staining quality make it the preferred equipment for large hospitals and independent pathology laboratories.

Research Institutions

Research Institutions

For research institutions conducting histological and cytological studies, the YXRF-3000B provides flexible staining protocols and precise staining control to meet various research needs. Its customizable staining parameters enable researchers to obtain consistent and reproducible experimental results.

Cancer Centers

Cancer Centers

In cancer diagnosis and research centers, the YXRF-3000B can process a large number of pathological sections, supporting various special staining and immunohistochemical staining, providing reliable technical support for accurate diagnosis and classification of tumors.

Educational Institutions

Educational Institutions

Medical colleges and training institutions can use the YXRF-3000B for pathology technology teaching and practical training. Its intuitive operation interface and detailed operation logs provide students with an excellent learning platform.
